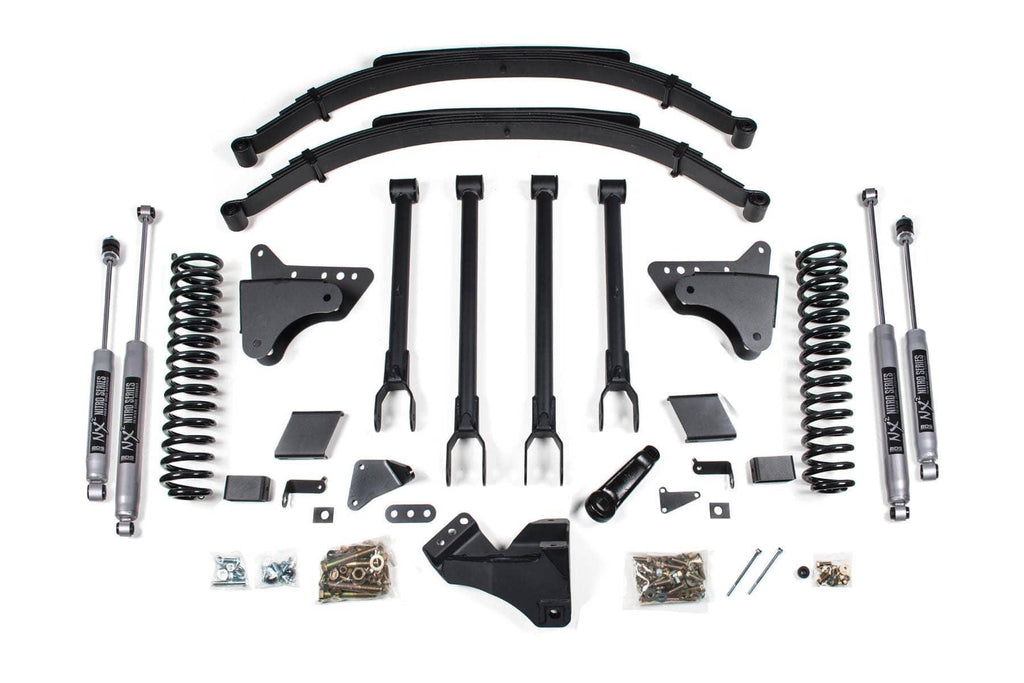

8" 4-LINK LIFT KIT 11-16 S/DUTY 4WD DIESEL - BDS1500H

• Easy, 100% Bolt-on installation.
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain.
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel.
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling.
• Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring.
• Standard NX2 Nitro shocks with vehicle-specific valving for better control.
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road.

Important Note: Front bumper spacer kit may be required to run 38"x15.50" tires. Although extremely rare, front driveline vibration may occur If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (#123406) will be required. Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required. If equipped with a rear sway bar, #123009 is required. U-bolts will not work on dually. Front auxiliary shocks can be omitted from kit - the system can be used with C/O installed alone. BDS leaf springs are not intended for use beyond the truck's maximum payload capacity. Trucks equipped with overload springs will only have the capacity of a non-overload equipped truck. If heavy payload use is desired, supplemental rear airbags are recommended.
